Description

SPECIFICATIONS

Brand Name: kebidu

Use: Universal

Use: Lighting

Use: SWITCH

Wireless Communication: RF

Support APP: No

Frequency: 433 MHz

Channel: 1

Model Number: DC 5V Wireless RF Remote Control Switch

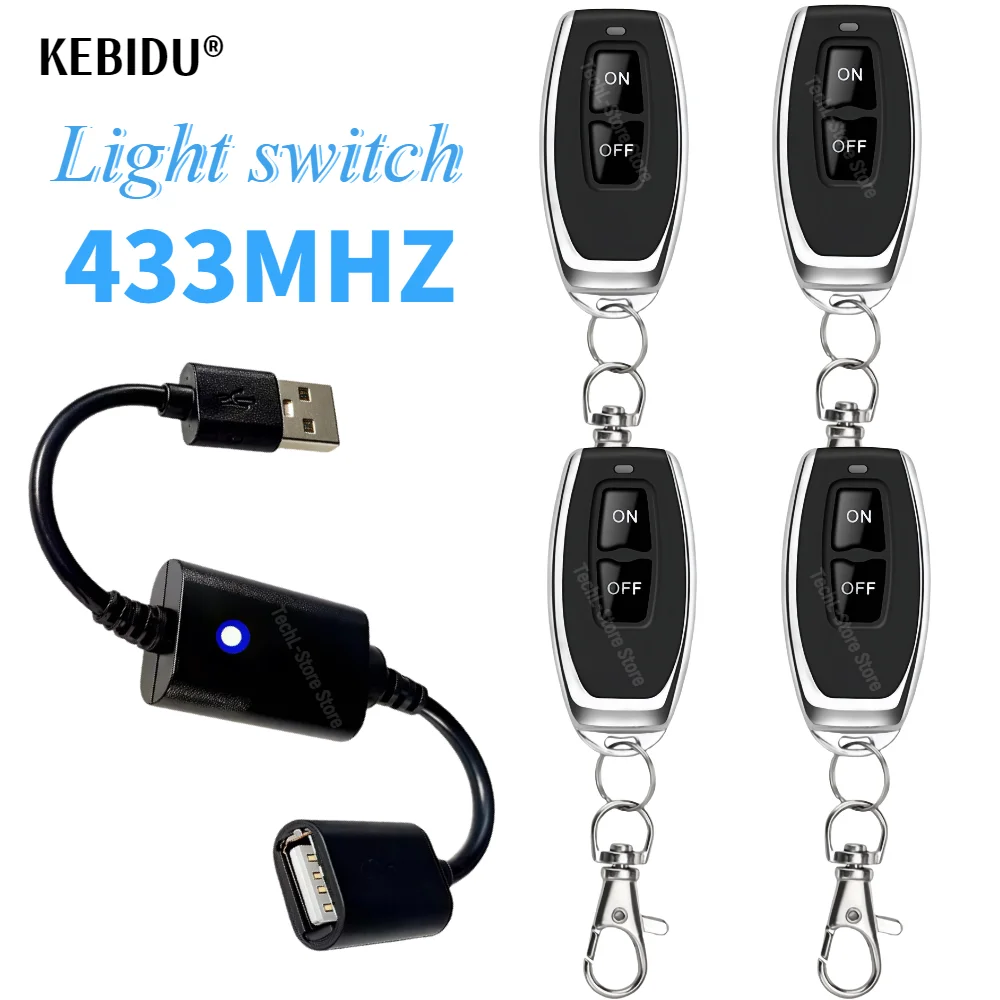

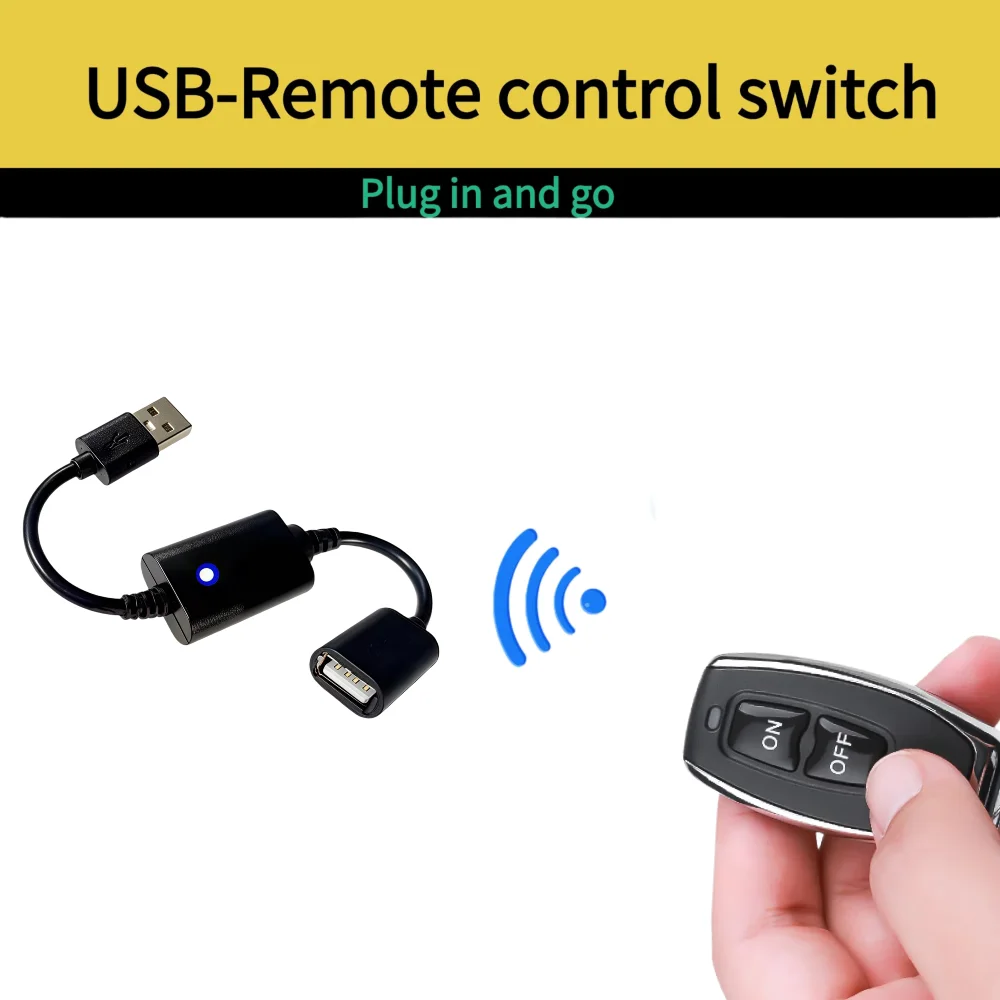

feature 1: USB Wireless RF Remote Control Switch

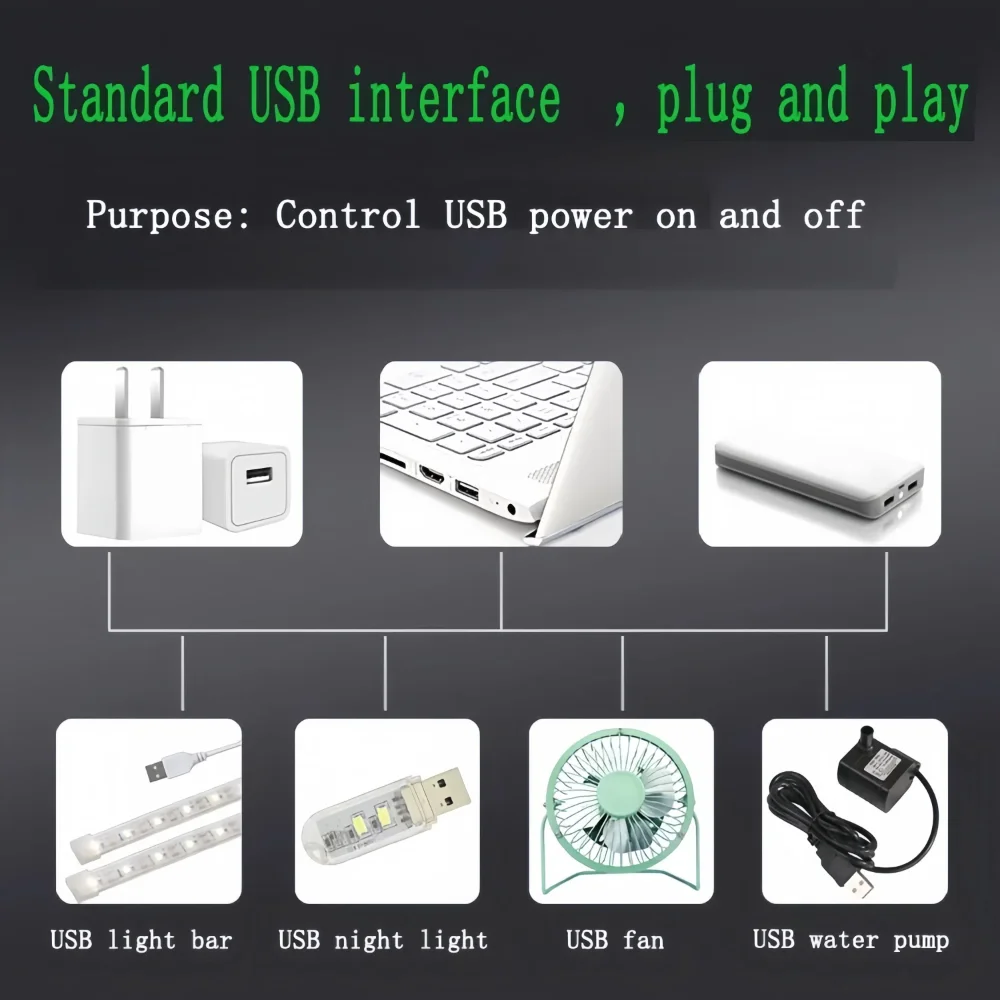

feature 2: For USB LED Light Strip Reading Lamp Light Fan Toggle Model

feature 3: Rf Remote Control Switch Relay

feature 4: On / Off Transmitter USB Switch

feature 5: plug and play

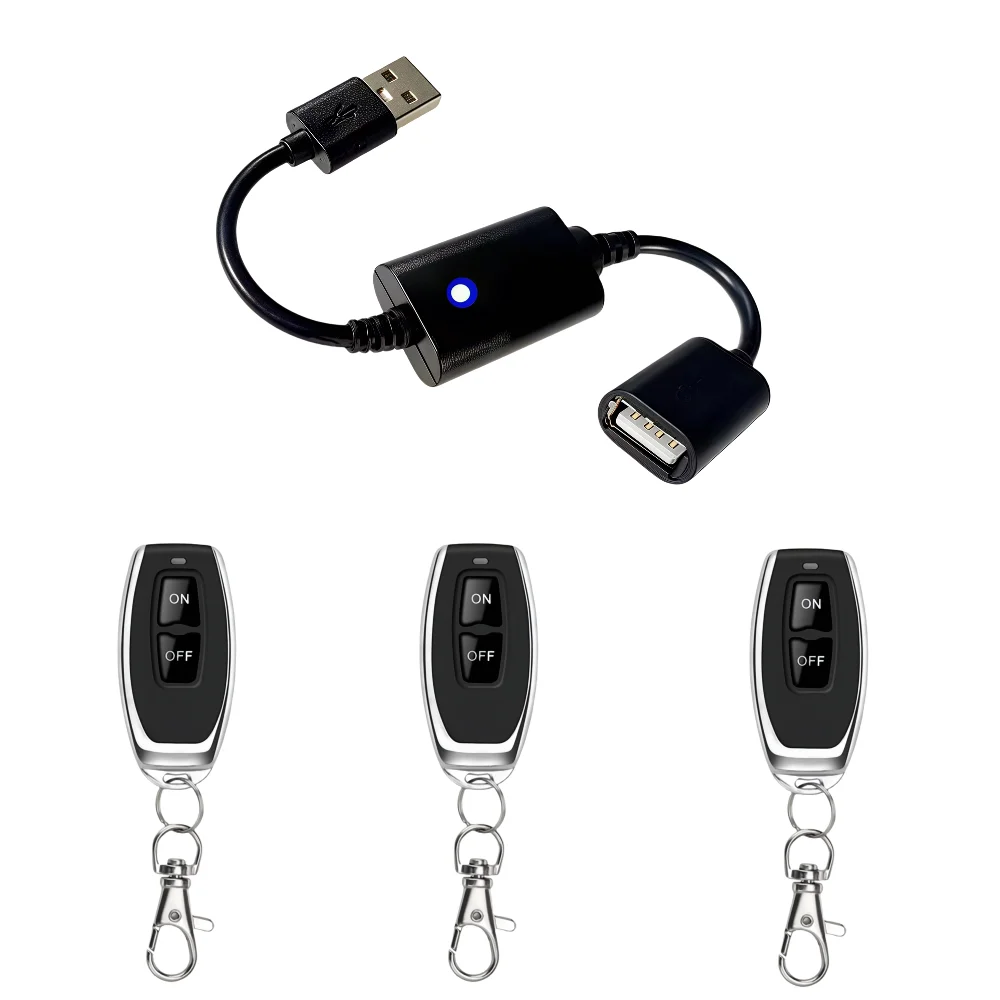

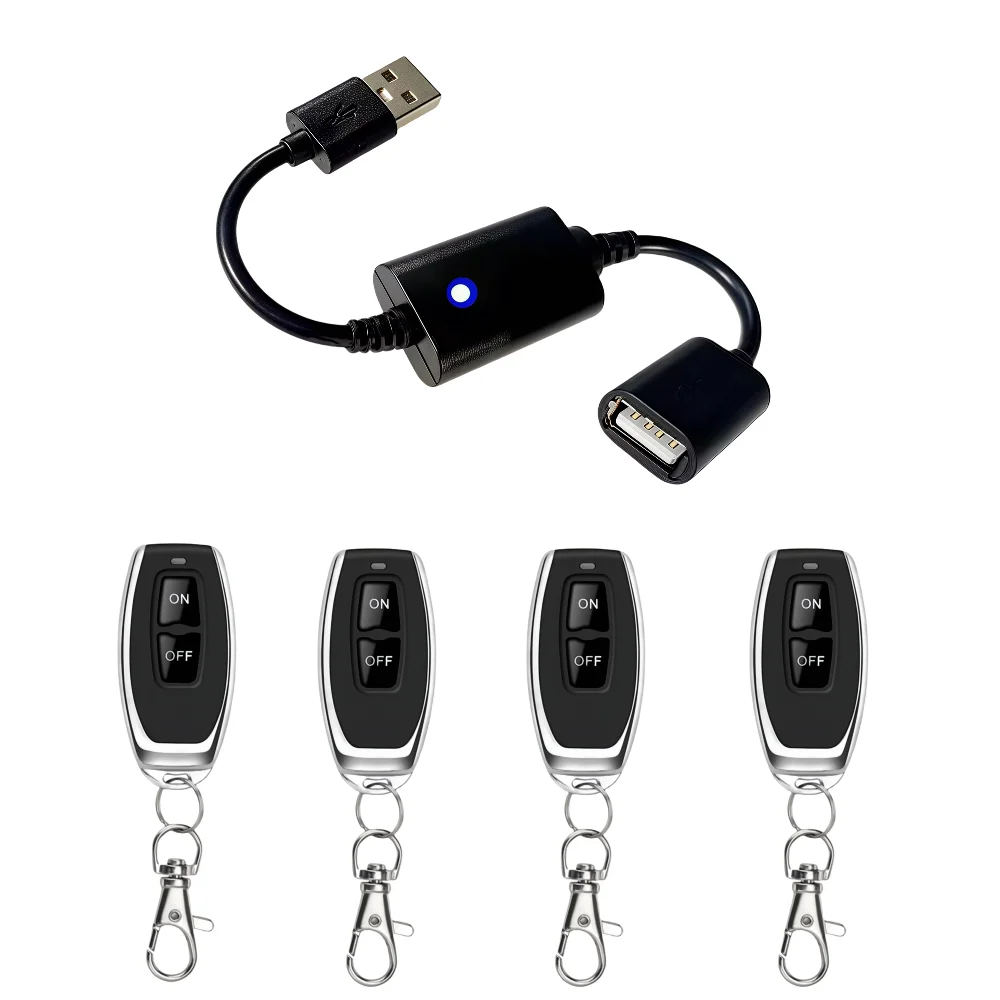

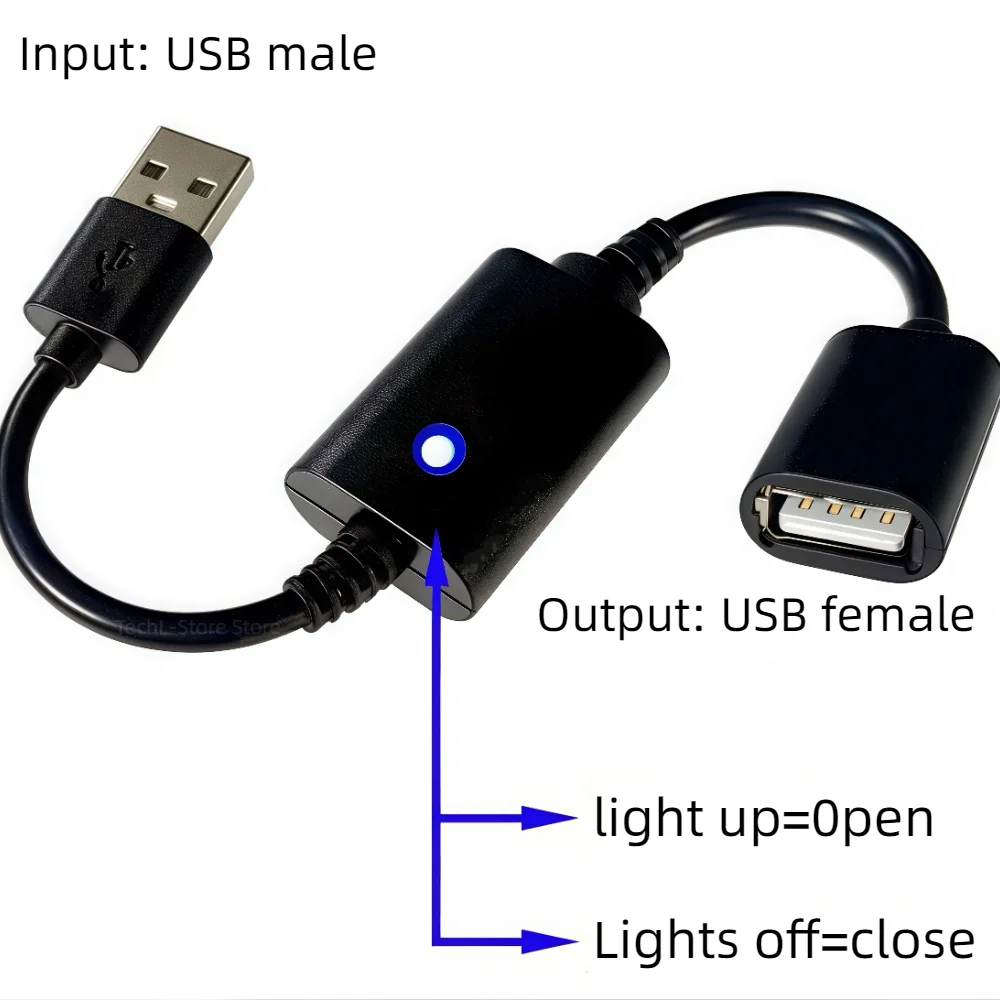

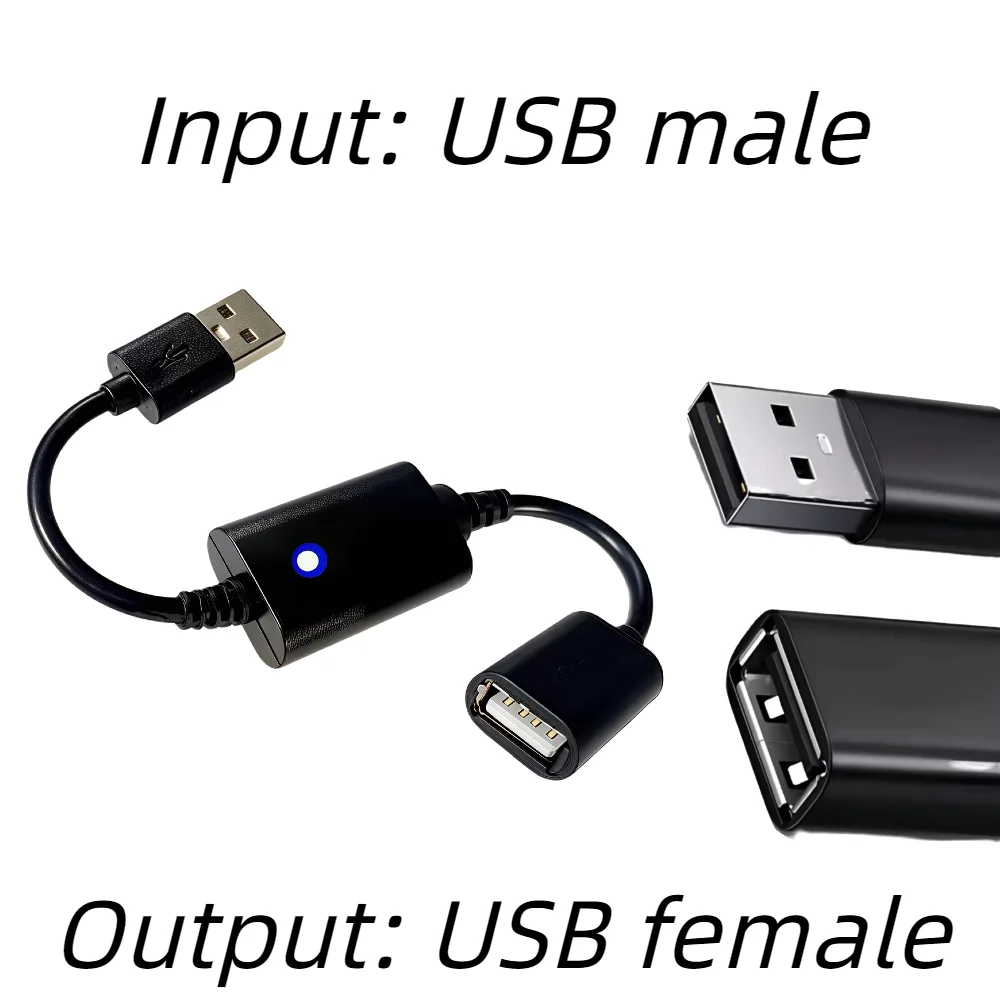

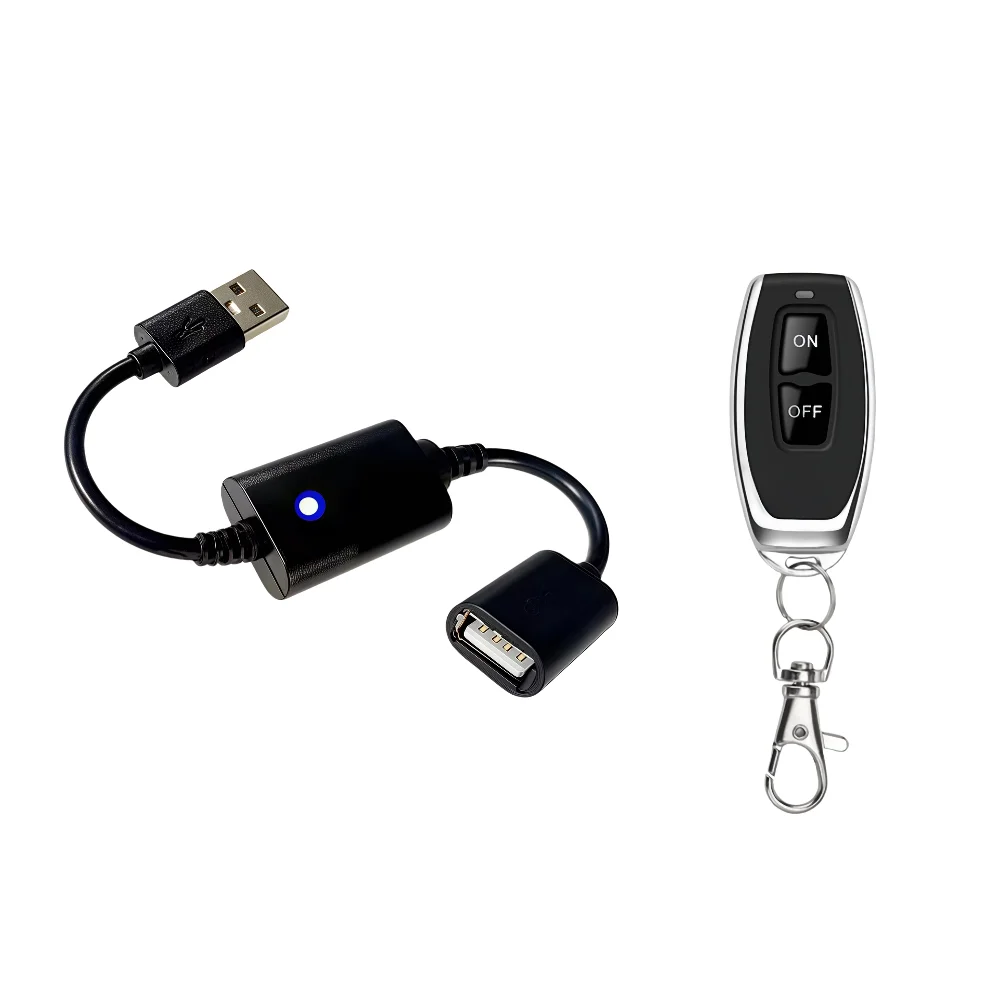

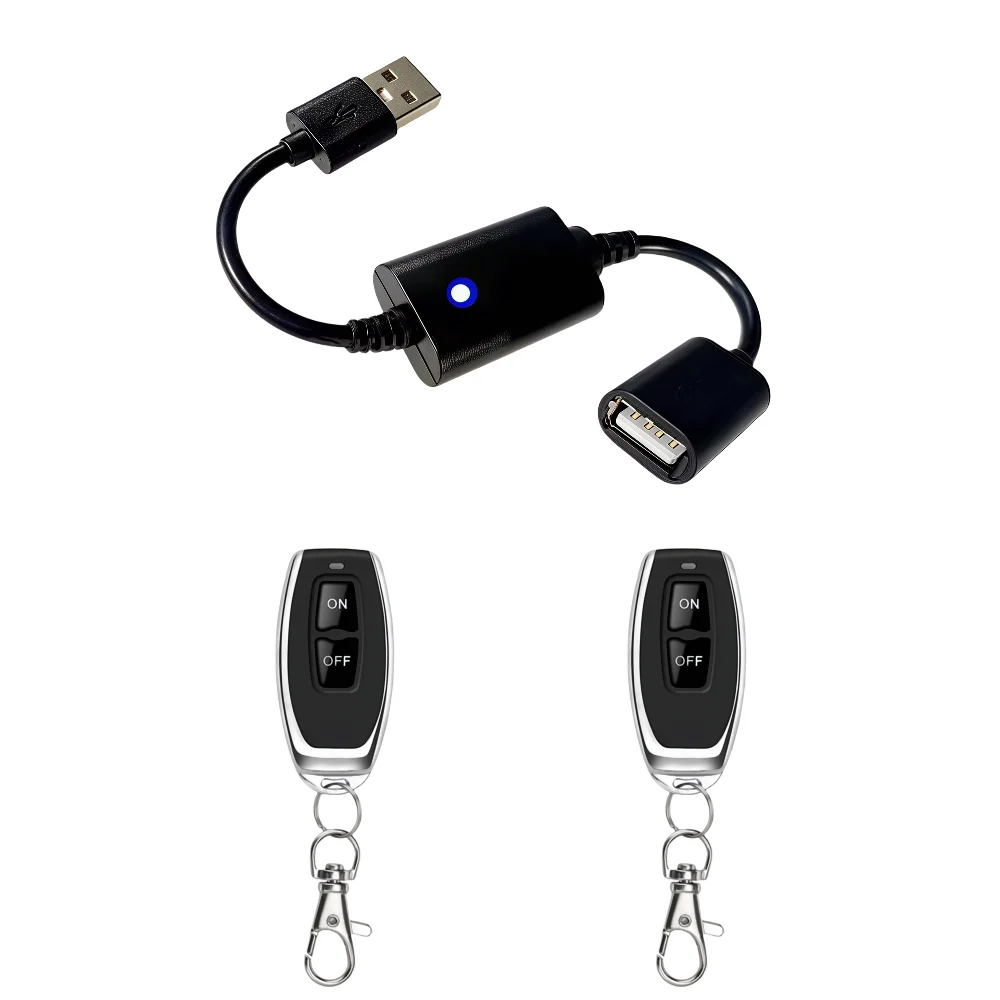

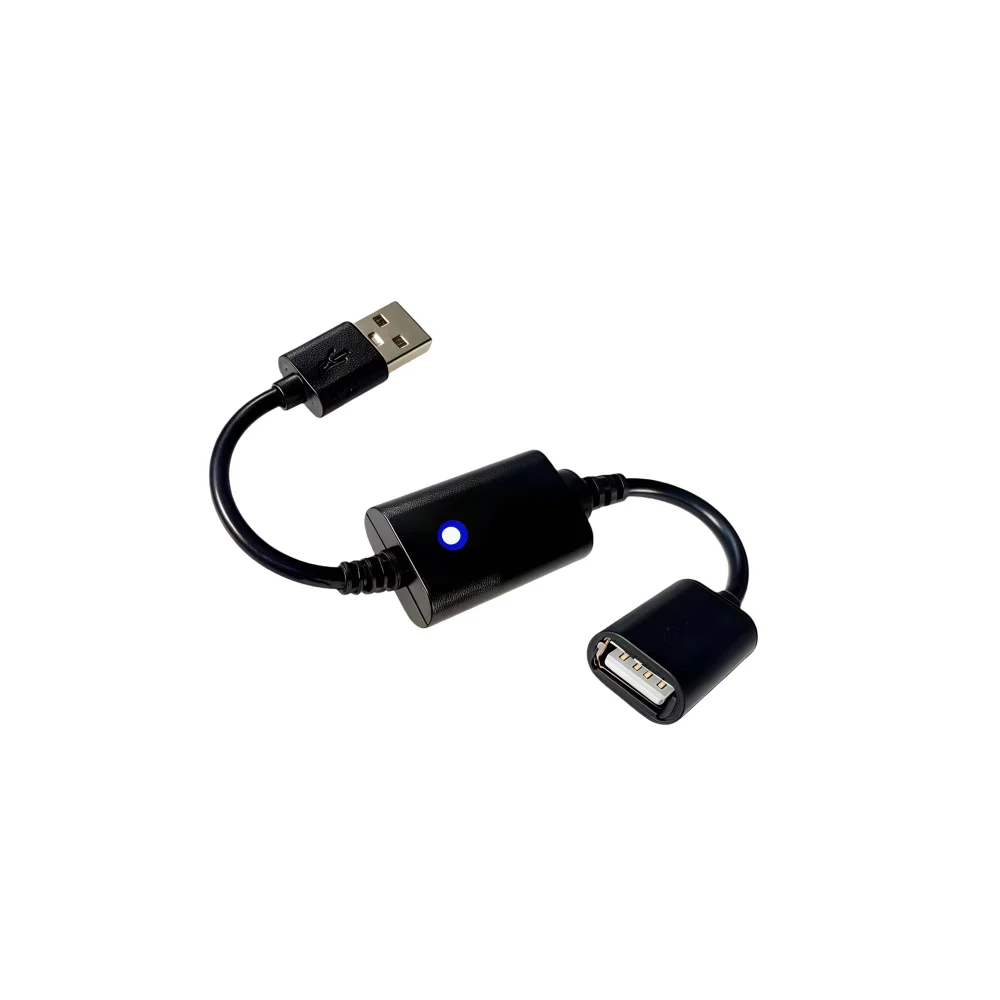

This is a receiver with USB male and female cable, which can be directly connected to the male connector of the power supply and the female connector of the device, eliminating the trouble of wiring.

voltage 5V can be used.

Length: About 22CM/8.2INCH

Working mode: MOS tube SCR silent and non-contact (control e positive electrode VCC + )

Frequency: 433MHZ

Standby & working current: 6mA

Load capacity: 3A

Receiver Weight: 20g

Code pairing method: The receiver has a learning function, can be equipped with a remote control, and can be set for multiple sets of universal

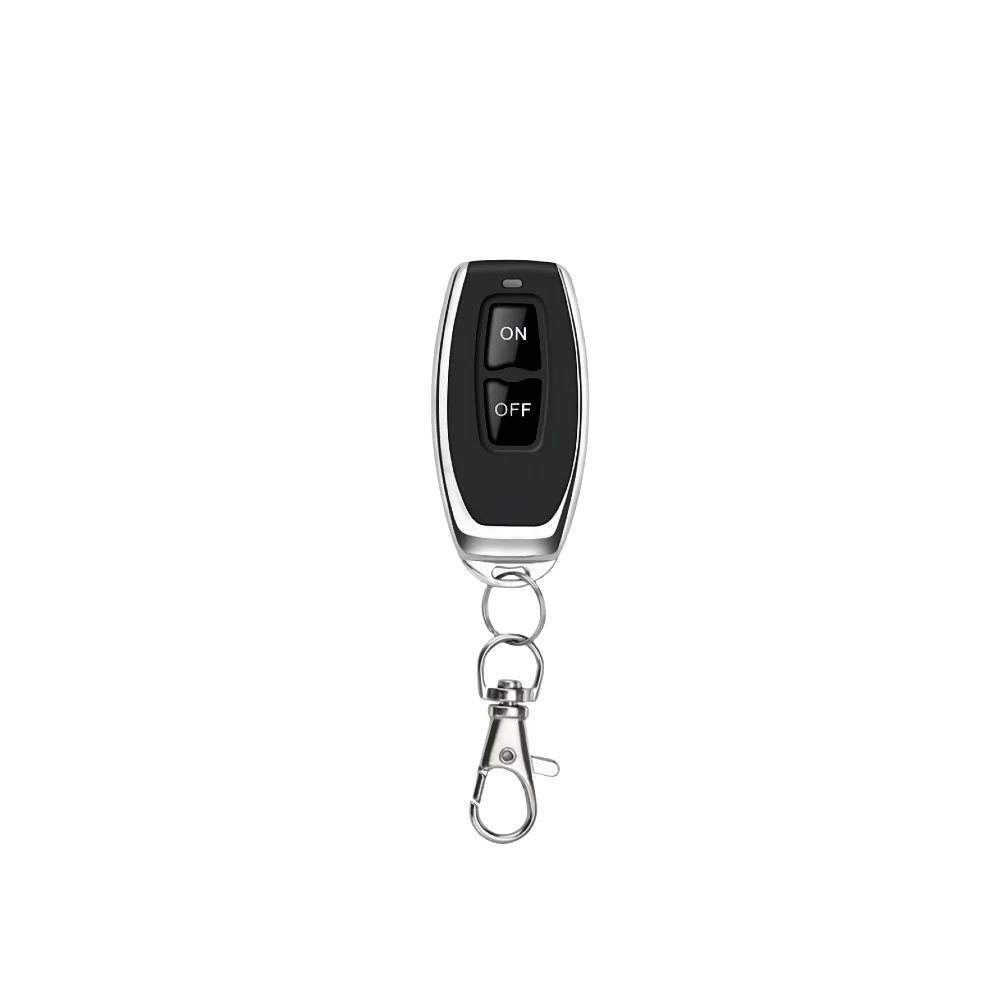

Transmitter:

1.Buttons: 1 Buttons

2.Working Voltage:DC6V (2PCS CR2016)

3.Operating frequency :433MHz

4.Remote Distance: 20-50M

5.Operating Current: 13 mAh

6.Encode: EV1527

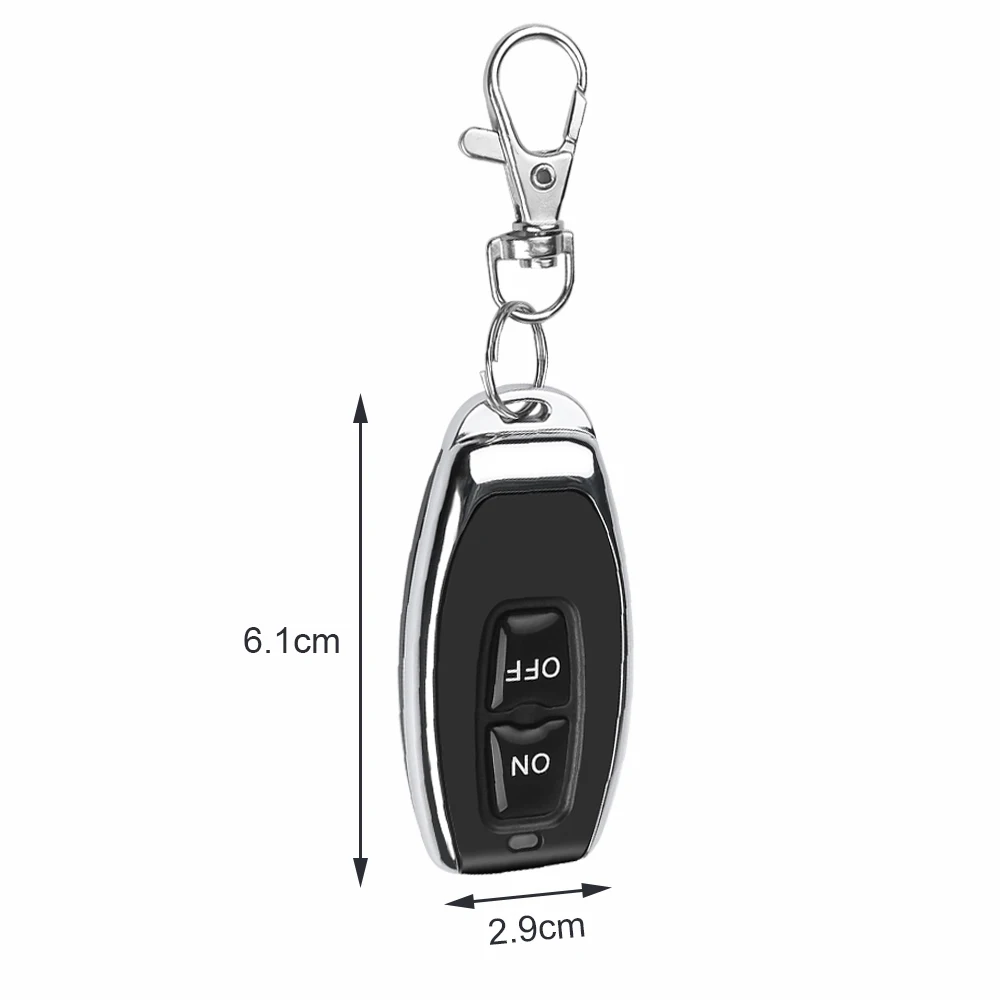

7.Size: 50*50mm

Learning Method

Input 5V(USB) for the Receiver, Connect the Learning Dot, The receiver Led indicator ON. Press remote button A ( ON ) button 1 time, Led indicator flash for 1 times, Then Press remote button B (OFF) button 1 time, Led indicator flash for 1 times again, learning successfully

Latched: Press ->On; Press other button -> Off

Input 5V (USB) for the Receiver, Connect the Learning Dot Until the receiver Led indicator flash for 3 times, it mean Change Toggle model.

Toggle: Press ->On; Press same button again -> Off.

Clearing code Method

Connect the Learning Dot Until the receiver Led indicator flash for 8 times, it mean Clearing Code successfully
